飞牛Nas部署 safeline 雷池WAF

一、前言

1.1、介绍

SafeLine，中文名 "雷池"，是一款简单好用, 效果突出的 Web 应用防火墙(WAF)，可以保护 Web 服务不受黑客攻击

二、部署工作

2.1、服务包部署

用 Last_Three_Service_Package.sh 选择 safeline 部署完毕，直接跳转到 Web 界面配置即可！

2.2、Compose 文件部署

networks:
  safeline-ce:
    name: safeline-ce
    driver: bridge
    ipam:
      driver: default
      config:
        - gateway: ${SUBNET_PREFIX:?SUBNET_PREFIX required}.1
          subnet: ${SUBNET_PREFIX}.0/24
    driver_opts:
      com.docker.network.bridge.name: safeline-ce

services:
  postgres:
    container_name: safeline-pg
    restart: always
    image: ${IMAGE_PREFIX}/safeline-postgres${ARCH_SUFFIX}:15.2
    volumes:
      - ${SAFELINE_DIR}/resources/postgres/data:/var/lib/postgresql/data
      - /etc/localtime:/etc/localtime:ro
    environment:
      - POSTGRES_USER=safeline-ce
      - POSTGRES_PASSWORD=${POSTGRES_PASSWORD:?postgres password required}
    networks:
      safeline-ce:
        ipv4_address: ${SUBNET_PREFIX}.2
    command: [postgres, -c, max_connections=600]
    healthcheck:
      test: pg_isready -U safeline-ce -d safeline-ce
  mgt:
    container_name: safeline-mgt
    restart: always
    image: ${IMAGE_PREFIX}/safeline-mgt${REGION}${ARCH_SUFFIX}:${IMAGE_TAG:?image tag required}
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - ${SAFELINE_DIR}/resources/mgt:/app/data
      - ${SAFELINE_DIR}/logs/nginx:/app/log/nginx:z
      - ${SAFELINE_DIR}/resources/sock:/app/sock
      - /var/run:/app/run
    ports:
      - ${MGT_PORT:-9443}:1443
    healthcheck:
      test: curl -k -f https://localhost:1443/api/open/health
    environment:
      - MGT_PG=postgres://safeline-ce:${POSTGRES_PASSWORD}@safeline-pg/safeline-ce?sslmode=disable
    depends_on:
      - postgres
      - fvm
    logging:
      driver: "json-file"
      options:
        max-size: "100m"
        max-file: "5"
    networks:
      safeline-ce:
        ipv4_address: ${SUBNET_PREFIX}.4
  detect:
    container_name: safeline-detector
    restart: always
    image: ${IMAGE_PREFIX}/safeline-detector${REGION}${ARCH_SUFFIX}:${IMAGE_TAG}
    volumes:
      - ${SAFELINE_DIR}/resources/detector:/resources/detector
      - ${SAFELINE_DIR}/logs/detector:/logs/detector
      - /etc/localtime:/etc/localtime:ro
    environment:
      - LOG_DIR=/logs/detector
    networks:
      safeline-ce:
        ipv4_address: ${SUBNET_PREFIX}.5
  tengine:
    container_name: safeline-tengine
    restart: always
    image: ${IMAGE_PREFIX}/safeline-tengine${REGION}${ARCH_SUFFIX}:${IMAGE_TAG}
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /etc/resolv.conf:/etc/resolv.conf:ro
      - ${SAFELINE_DIR}/resources/nginx:/etc/nginx
      - ${SAFELINE_DIR}/resources/detector:/resources/detector
      - ${SAFELINE_DIR}/resources/chaos:/resources/chaos
      - ${SAFELINE_DIR}/logs/nginx:/var/log/nginx:z
      - ${SAFELINE_DIR}/resources/cache:/usr/local/nginx/cache
      - ${SAFELINE_DIR}/resources/sock:/app/sock
    environment:
      - TCD_MGT_API=https://${SUBNET_PREFIX}.4:1443/api/open/publish/server
      - TCD_SNSERVER=${SUBNET_PREFIX}.5:8000
      # deprecated
      - SNSERVER_ADDR=${SUBNET_PREFIX}.5:8000
      - CHAOS_ADDR=${SUBNET_PREFIX}.10
    ulimits:
      nofile: 131072
    network_mode: host
  luigi:
    container_name: safeline-luigi
    restart: always
    image: ${IMAGE_PREFIX}/safeline-luigi${REGION}${ARCH_SUFFIX}:${IMAGE_TAG}
    environment:
      - MGT_IP=${SUBNET_PREFIX}.4
      - LUIGI_PG=postgres://safeline-ce:${POSTGRES_PASSWORD}@safeline-pg/safeline-ce?sslmode=disable
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - ${SAFELINE_DIR}/resources/luigi:/app/data
    logging:
      driver: "json-file"
      options:
        max-size: "100m"
        max-file: "5"
    depends_on:
      - detect
      - mgt
    networks:
      safeline-ce:
        ipv4_address: ${SUBNET_PREFIX}.7
  fvm:
    container_name: safeline-fvm
    restart: always
    image: ${IMAGE_PREFIX}/safeline-fvm${REGION}${ARCH_SUFFIX}:${IMAGE_TAG}
    volumes:
      - /etc/localtime:/etc/localtime:ro
    logging:
      driver: "json-file"
      options:
        max-size: "100m"
        max-file: "5"
    networks:
      safeline-ce:
        ipv4_address: ${SUBNET_PREFIX}.8
  chaos:
    container_name: safeline-chaos
    restart: always
    image: ${IMAGE_PREFIX}/safeline-chaos${REGION}${ARCH_SUFFIX}:${IMAGE_TAG}
    logging:
      driver: "json-file"
      options:
        max-size: "100m"
        max-file: "10"
    environment:
      - DB_ADDR=postgres://safeline-ce:${POSTGRES_PASSWORD}@safeline-pg/safeline-ce?sslmode=disable
    volumes:
      - ${SAFELINE_DIR}/resources/sock:/app/sock
      - ${SAFELINE_DIR}/resources/chaos:/app/chaos
    networks:
      safeline-ce:
        ipv4_address: ${SUBNET_PREFIX}.10

2.3、飞牛可视化部署

建议服务包或 Compose 配置文件部署

2.4、环境变量配置

2.4.1、.env文件创建

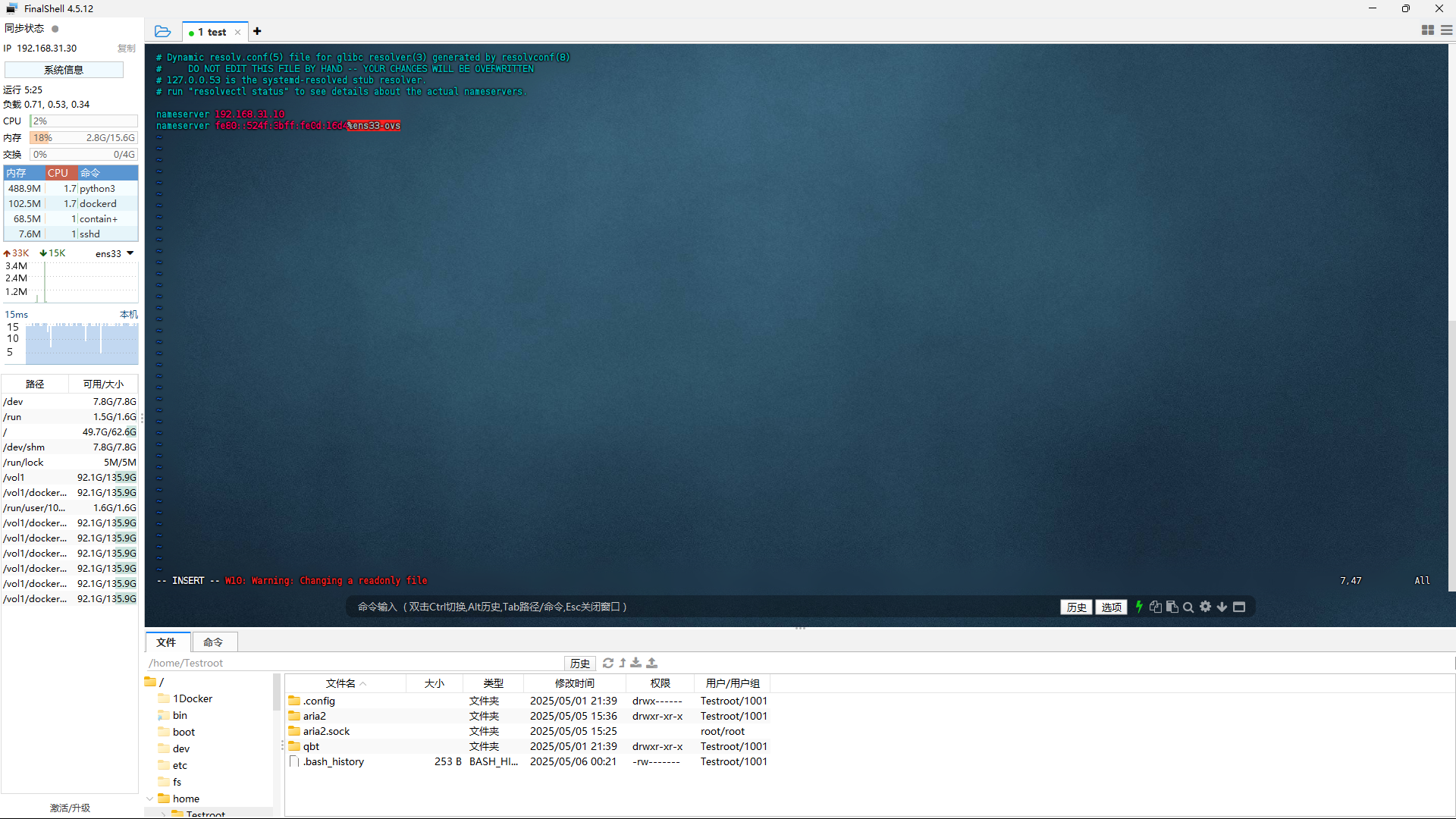

打开文件管理器，找到 safeline 的 Compose 文件，在其目录中创建 .env 文件，将下面代码复制进文件中保存

SAFELINE_DIR=/vol1/1000/Docker/safeline
IMAGE_TAG=latest
MGT_PORT=27015
POSTGRES_PASSWORD=yourpassword #-------（自定义密码使用数字+英文大小写组合，勿使用特殊字符）
SUBNET_PREFIX=172.22.222
IMAGE_PREFIX=swr.cn-east-3.myhuaweicloud.com/chaitin-safeline
ARCH_SUFFIX=
RELEASE=
REGION=
